- Short Strong Shaft
- Chrome Vanadium Steel
- Matt Chrome Plated
- Position of Open End 15°
Finish
C = Matt Chrome Neutral
TS 81/6 ISO 3318
- Short Strong Shaft
- Chrome Vanadium Steel
- Matt Chrome Plated
- Position of Open End 15°
Finish
C = Matt Chrome Neutral
TS 81/6 ISO 3318
Product Specifications
| Article No. | Size (mm) | Length (mm) | Weight (Grams) |
|---|---|---|---|
| 1206073 | 6×7 | 95 | 16 |
| 1208093 | 8×9 | 104 | 22 |
| 1208103 | 8×10 | 104 | 22 |
| 1210113 | 10×11 | 120 | 42 |
| 1210123 | 10×12 | 120 | 42 |
| 1212133 | 12×13 | 132 | 56 |
| 1212143 | 12×14 | 132 | 58 |
| 1214153 | 14×15 | 149 | 68 |
| 1213173 | 13×17 | 160 | 90 |
| 1214173 | 14×17 | 160 | 90 |
| 1216173 | 16×17 | 160 | 94 |
| 1217193 | 17×19 | 177 | 132 |
| 1218193 | 18×19 | 177 | 136 |
| 1219223 | 19×22 | 196 | 170 |
| 1220223 | 20×22 | 196 | 174 |
| 1221233 | 21×23 | 207 | 220 |
| 1222243 | 22×24 | 207 | 230 |
| 1224263 | 24×26 | 232 | 310 |
| 1224273 | 24×27 | 232 | 320 |
| 1225283 | 25×28 | 242 | 340 |
| 1227323 | 27×32 | 257 | 350 |
| 1230323 | 30×32 | 257 | 370 |
Packing Options
Finish Options
- C = Matt Chrome Neutral
Sets
-

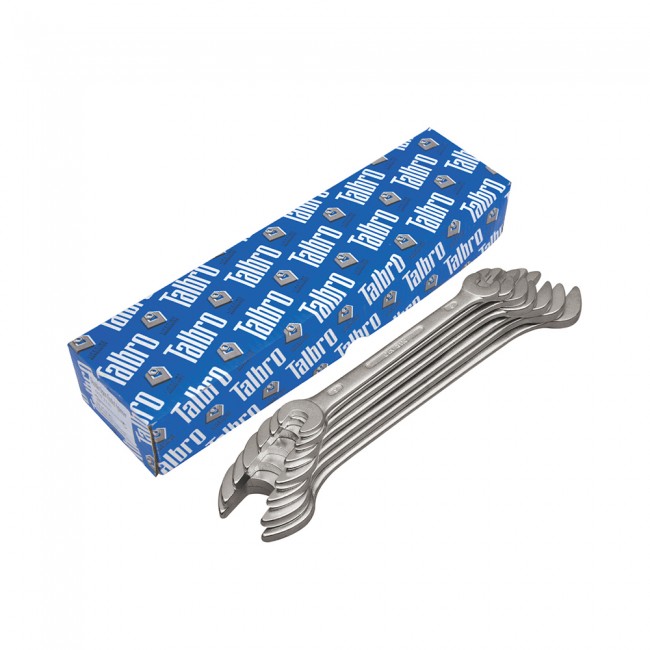

12C – KSet in Card Board Box
Set in Card Board Box
12C – KArticle No. Content (mm) Weight (Grams) 12C-K/6 6×7 8×9 10×11 12×13 14×15 16×17 300 12C-K/8 6×7 8×9 10×11 12×13 14×15 16×17 18×19 20×22 625 12C-K/12 6×7 8×9 10×11 12×13 14×15 16×17 18×19 20×22 21×23 24×27 25×28 30×32 1900
12C – KSet in Card Board Box
Set in Card Board Box
12C – K
12C – K
| Article No. | Content (mm) | Weight (Grams) | |
|---|---|---|---|
| 12C-K/6 | 6×7 8×9 10×11 12×13 14×15 16×17 | 300 | |
| 12C-K/8 | 6×7 8×9 10×11 12×13 14×15 16×17 18×19 20×22 | 625 | |
| 12C-K/12 | 6×7 8×9 10×11 12×13 14×15 16×17 18×19 20×22 21×23 24×27 25×28 30×32 | 1900 |
